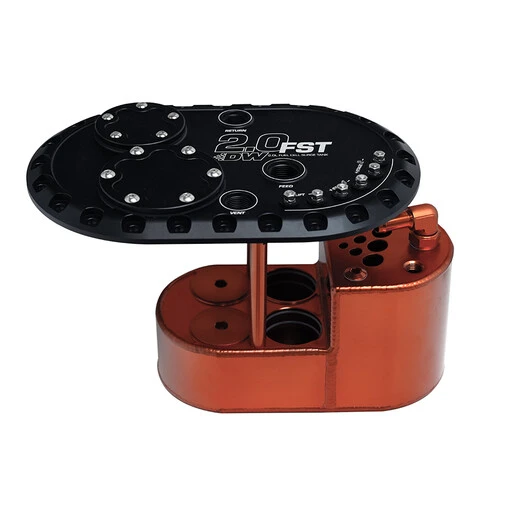

Deatschwerks 2.0FST Fuel Cell Surge Tank – 2L

Deatschwerks Fuel Cell Surge Tank

• Capacity : 2 liters
• Fits standard 6×10″ 24 bolt fuel cells
• Designed to fit up to 4 fuel pumps
• Compatible with Ø39 mm or Ø46 mm pumps
• Staged pump operation to preserve the fuel system
• Limits fuel surge
• Supports up to 2500 bhp !
• Deatschwerks part no. : 6-000-20FST
• Express shipping !

Deatschwerks 2.0FST Fuel Cell Surge Tank Specifications

A surge tank allows you to regroup the fuel feed and return in a confined space, ensuring a constant flow and limiting unwanted fluid movement for high power engines (over 1000 hp), that require a high and stable fuel flow rate.

This Deatschwerks fuel cell surge tank offers a 2 liter capacity and must be coupled with a standard racing tank (6×10″ 24 bolts). Anodized for compatibility with E85, methanol and other derivatives, this aluminum tank can be used with up to four 39mm (Deatschwerks DW100, DW200, DW300) or 46mm (DW400) diameter pumps, sold separately.

The 2.0FST module is designed so you have the ability to turn 1, 2, or 3 pumps on in stages. There is no need to run all the pumps at the same time when the engine is idling or under normal driving conditions, as this can generate both heat and load on the fuel system.

This makes it possible to use only the main pump (stage 1) for 90% of the time, at idle, at cruising speed and during daily driving, and to take advantage of the maximum flow offered by the additional pump(s) (stage 2) when you need to exploit the full power of your engine.
