Deatschwerks DWR1000iL “Compact” E85 Fuel Pressure Regulator

Control Pressure with Deatschwerks

• Ultra-compact size for easy fitment

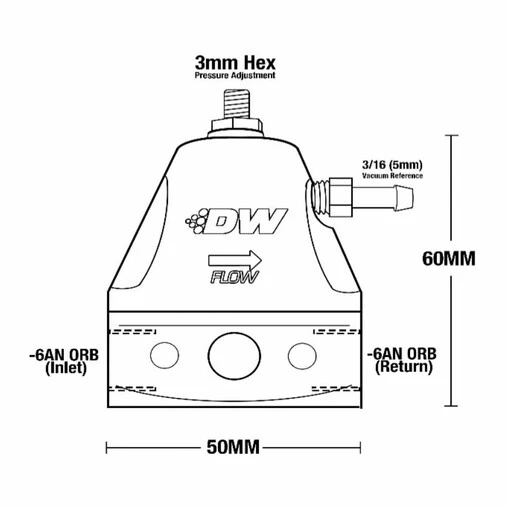

• 60 mm height, Ø50 mm
• Controls fuel up to 7 bars with precision and stability
• Supports a flow rate of up to 500 litres / hour
• Inline -6 AN inlet and outlet (Dash 6)
• 1/8″ NPT port for a pressure gauge
• Ø36 mm nitrile diaphragm
• Compatible with all fuels, including E85
• Part number: 6-1001-FRB
• Anodised black finish

Deatschwerks DWR1000iL Adjustable Fuel Pressure Regulator Specifications

This universal fuel pressure regulator is particularly small and compact, making it easy to fit in the tightest engine bays. Ideal for swaps or modern engines !

Manufactured in the USA by Deatschwerks, it’s made from forged aluminium and can be regulated with a high level of precision from 2 to 7 bar, up to a flow rate of 500 liters per hour. Using -6 AN and -8 AN fittings, you can adapt it to any fuel system and use its 1/8″ NPT port for connecting a pressure gauge.

The regulator uses a 36 mm nitrile diaphragm, which is highly resistant to wear and compatible with all types of fuel : gasoline, ethanol, E85, methanol etc… It comes in a high quality, black anodized finish.
