Deatschwerks DWR2000 “High Volume” E85 Fuel Pressure Regulator

Control Pressure with Deatschwerks

• Ideal for very high horsepower applications

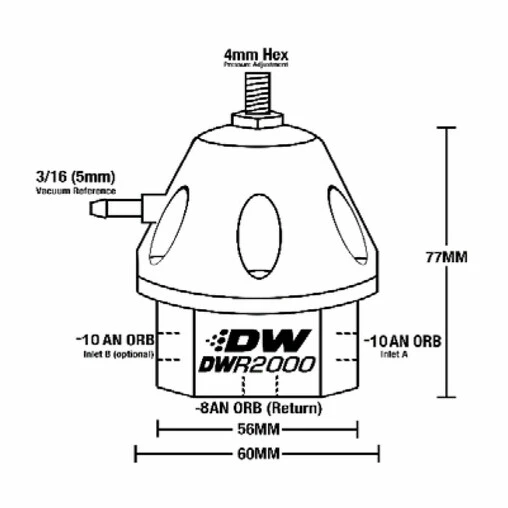

• 77 mm height, Ø60 mm
• Controls fuel up to 7 bars with precision and stability
• Supports a flow rate of up to 1000 litres / hour
• Dual -10 AN inlet (Dash 10)
• Singe -8 AN outlet (Dash 8)
• 1/8″ NPT port for a pressure gauge
• Ø49 mm nitrile diaphragm
• Compatible with all fuels, including E85
• Part number: 6-2000-FRB
• Anodised black finish

Deatschwerks DWR2000 Adjustable Fuel Pressure Regulator Specifications

This universal fuel pressure regulator is particularly suitable for very high fuel flows. Its larger size makes it ideal for engines of 1000 horsepower or more.

Manufactured in the USA by Deatschwerks, it’s made from forged aluminium and can be regulated with a high level of precision from 2 to 7 bar, up to a flow rate of 1000 liters per hour. Using two -10 AN inlets and one -8 AN outlet, in can be adapted to any fuel system and offers a 1/8″ NPT port for connecting a pressure gauge.

The regulator uses a 49 mm nitrile diaphragm, which is highly resistant to wear and compatible with all types of fuel : gasoline, ethanol, E85, methanol etc… It comes in a high quality, black anodized finish.
