Deatschwerks FF110 100 Micron (-8 AN) Universal Fuel Filter

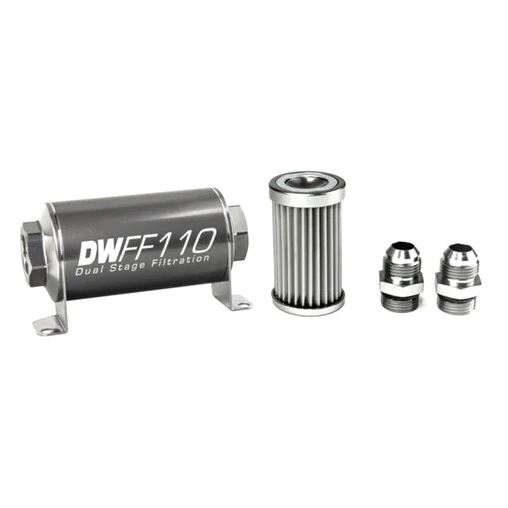

DW F110 Universal Fuel Filter Kit

• 100 micron fuel filtration
• 1000 litre / hour maximum fuel rate
• Reduced pressure drop
• Length 110 mm
• -10 AN ORG female fittings to 8 AN male adapters
• Compatible with all fuels, including E85
• Mounting brackets included
• Part number : 8-03-110-100K-8

Universal Deatschwerks Fuel Filter Kit Specifications

The Deatschwerks fuel filter kit is manufactured to a high level in the United States. It was designed with performance and functionality in mind. Supporting a maximum fuel rate of 1000 LPH, it is compatible with any type of fuel: unleaded, E85 ethanol, pure alcohol and other racing fuels.

Thanks to its dual-stage filtration (magneto-mechanical elements), this product provides excellent protection for injectors and fuel pumps: a 35mm neodymium magnet at the filter inlet traps ferrous contaminants with zero flow restrictions, whereas the internal stainless steel 100 micron mesh captures non-ferrous materials with a very low pressure drop.

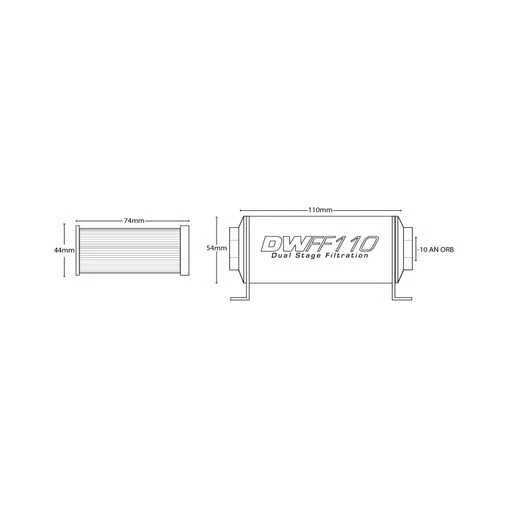

Its compact design (11 cm long, 5 cm diameter) and quality anodised aluminium finish make this fuel filter easy and pleasing to fit to your vehicle. It connects with x2 -10 AN ORG female fittings to 8 AN male adapters and is very cleanly installed thanks to its mounting brackets.
