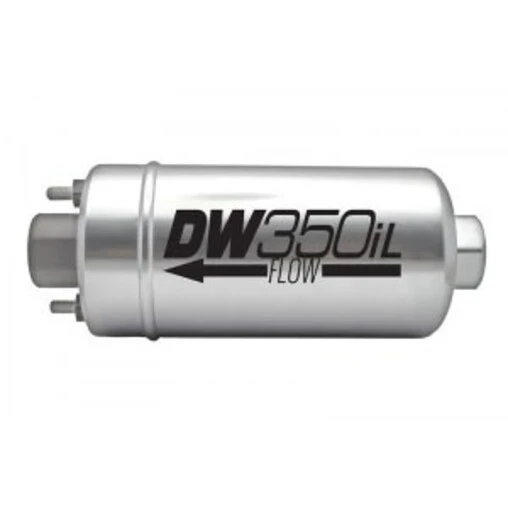

Deatschwerks Fuel Pump DW350iL – 350 L/h E85

350 L/h E85 compatible

• Flow at 3 BAR : 350 litres / hour
• Flow at 5 BAR : 300 litres / hour
• Maximum pressure : 7 BAR
• Input : Dash 8
• Output : Dash 8
• Overall pump length : 155 mm
• Outer diameter : 60 mm
• Mounting kit and optional fitings
• 3 year warranty
• Compatible with E85

Deatschwerks Fuel Pump – 350 L/h E85 Specification

• Flow at 3 BAR : 350 litres / hour
• Flow at 5 BAR : 300 litres / hour
• Maximum pressure : 7 BAR
• Input : Dash 8
• Output : Dash 8
• Overall pump length : 155 mm
• Outer diameter : 60 mm
• 3 year warranty
• Compatible with E85

Deatschwerks 350 L/h

This fuel pump is manufactured by Deatschwerks and can provide the perfect solution to your fuelling needs. Extremely reliable and compact, it is modelled on the dimensions and fittings of the famous 044 from Bosch, with new innovative pump technology. It’s nominal output is 350 litres per hour at 3 BAR, sufficient for beyond 700 HP.

It’s also possible to install 2 pumps in parallel to achieve even higher rates of fuel flow.

DriftShop provides only genuine Deatschwerks parts, directly from the manufacturer with a full 3 year warranty.

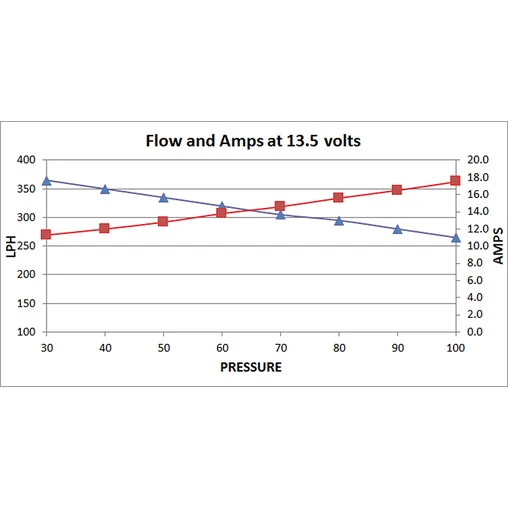

Flow / Amp Diagram
