Deatschwerks X1 Fuel Pump Hanger For Nissan S13 & R32

Deatschwerks X1 Hanger

• To suit Nissan S13 & Nissan R32 non-GT-R (see below for details)
• Ideal for replacing a rusty or damaged OEM hanger
• Fittings for factory rubber lines or Dash lines
• Compatible with most in-tank pumps
• Fits without modification in the OEM tank
• Optional high-current fuel pump hardwire kit
• Keeps all the features of the OEM hanger

Deatschwerks X1 Fuel Pump Hanger Specifications

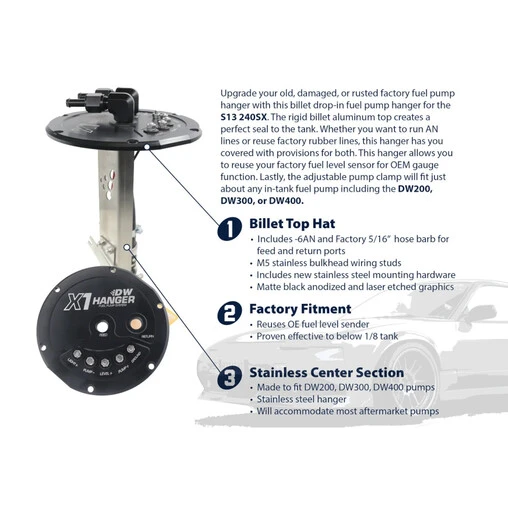

The Deatschwerks X1 fuel pump module for Nissan S13 and R32 (non-GT-R) is the ideal solution to replace an old rusty or damaged factory hanger. Its anodised aluminium top hat provides an excellent seal to the tank and offers hose barbs compatible with factory rubber lines or Dash lines.

This hanger has a stainless steel centre section designed to accommodate a Deatschwerks DW200, DW300 or DW400 in-tank fuel pump, or any other compatible pump. Easy to install, it retains the use of the factory fuel level sensor and remains fully effective even when the tank is less than 1/8th full.

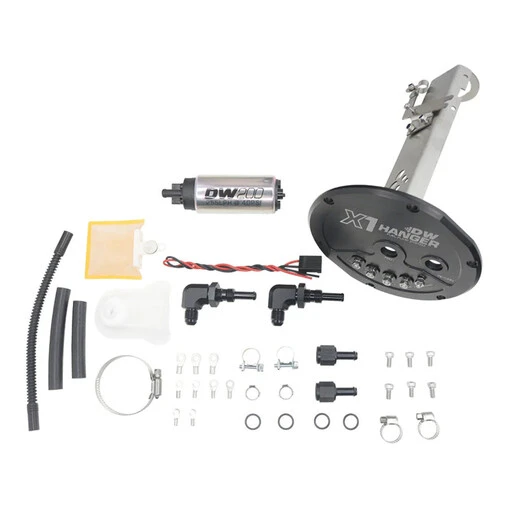

This module is available with or without a Deatschwerks pump of your choice. An optional high-current fuel pump hardwire kit with a Bosch 40 amp relay is available (recommended when installing a high amperage pump).

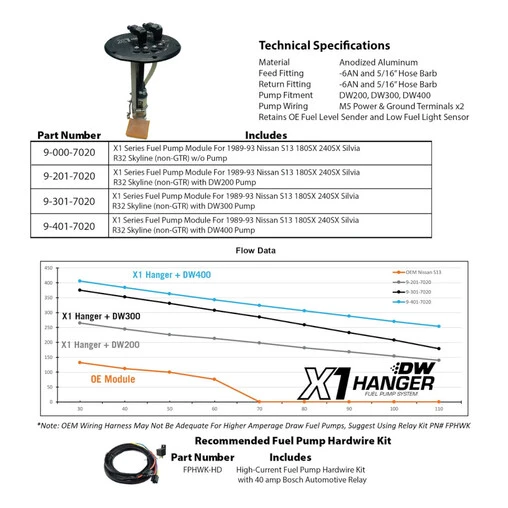

Technical Specifications

• Materials: anodised aluminium and stainless steel
• Feed fitting: Dash 6 and 5/16″ hose barb
• Return fitting: Dash 6 and 5/16″ hose barb
• Pump fitment: Deatschwerks DW200, DW300 and DW400

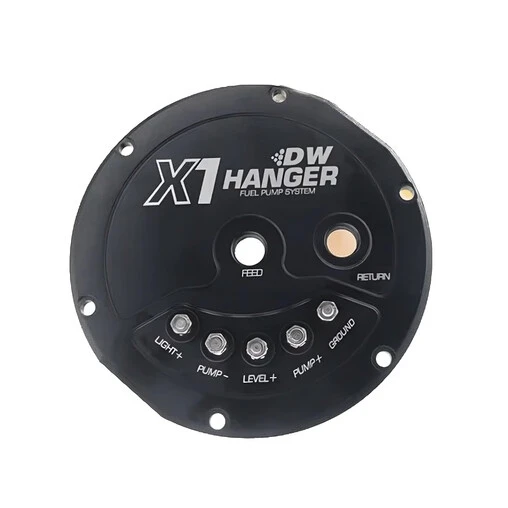

• Pump wiring: M5 power & ground terminals x2
• Retains OE fuel level sender and low fuel light sensor
• Efficiency: below 1/8 tank

To fit

• Nissan 180SX S13 (1989-1993)
• Nissan 200SX S13 (1989-1993)
• Nissan 240SX S13 (1989-1993)
• Nissan Silvia S13 (1989-1993)
• Nissan Skyline R32 (1989-1993) excl. GT-R
