Deatschwerks X2 Dual Fuel Pump Module For Toyota GT86 & Subaru BRZ

Deatschwerks X2-Series Module

• For Toyota GT86, Subaru BRZ, Scion FR-S (2012-2021)
• The ultimate solution for high flow rates without hassle!
• Accommodates 2 fuel pumps for a flow rate up to 620 LPH!
• Compatible with Ø39 mm in-tank pumps (Deatschwerks DW300, etc.)
• Fits without modification in the OEM tank
• Optional return fuel system kit (lines, fittings, regulator, gauge, filter, etc.)
• Keeps all the features of the OEM module

Deatschwerks X2-Series Module

The Deatschwerks X2-Series fuel module for Toyota GT86, Subaru BRZ and Scion FR-S is the ideal solution to allow your engine to achieve high power outputs with OEM fitment and reliability. With this product, no more hassle of having to build a custom multi-pump fuel system!

Compatible with unleaded gasoline or E85 ethanol, this module accommodates two in-tank fuel pumps and optimizes voltage for consistent pressure and flow. Tests of this module revealed a 260% increase in flow rate on these Toyota, Subaru and Scion models!

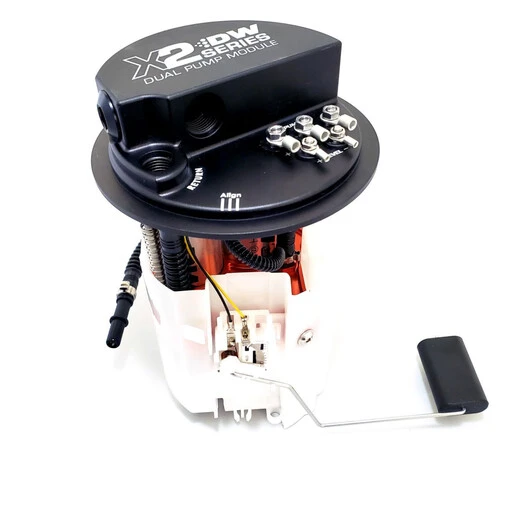

The Deatschwerks X2 module features a black anodized aluminum top hat with Dash 6 and Dash 8 fittings, stainless steel terminals and an orange anodized aluminum center section that can support two DW300 pumps (or any other Ø39 mm pump). It fits without any modification in the OEM plastic lower bucket and retains all standard features (fuel level sensor, filtration and surge capabilities). It is effective to below 1/8 of your fuel tank, even in sharp turns and during hard acceleration.

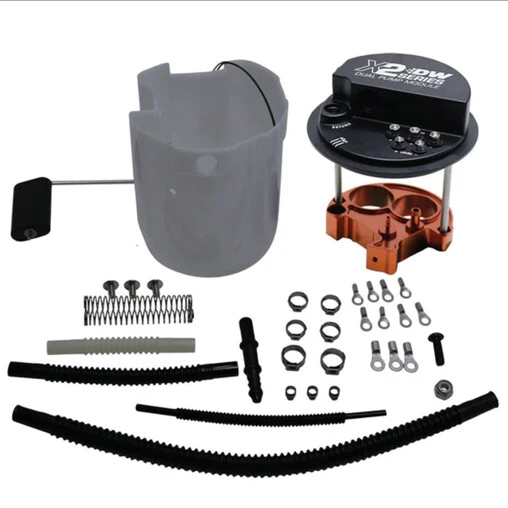

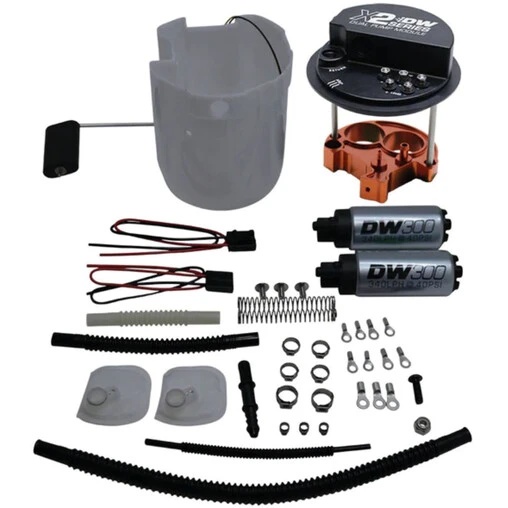

This module is sold alone or with two Deatschwerks DW300 fuel pumps. A return style plumbing system is required for the installation. A full fuel system kit is available that includes lines, fittings, pressure regulator with gauge, and fuel filter.

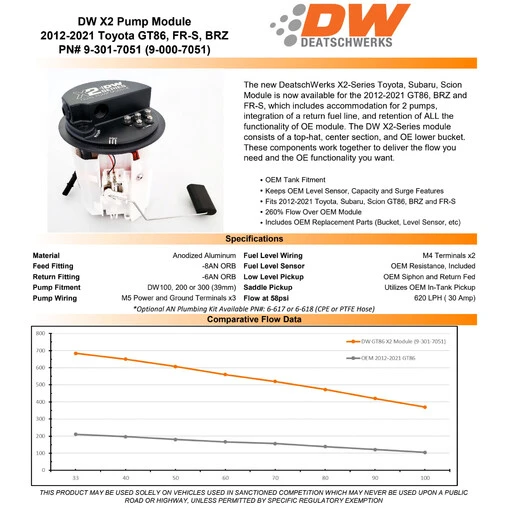

Technical Specifications

• Material: anodised aluminum
• Feed fitting: Dash 8 ORB
• Return fitting: Dash 6 ORB
• Pump fitment: Deatschwerks DW100, DW200, DW300 and other Ø39 mm pumps
• Pump wiring: M5 power & ground terminals x3
• Fuel pump wiring: M4 terminals x2
• Fuel level sensor: OEM resistance, included
• Efficiency: below 1/8 tank
• Saddle pickup: OEM in-tank pickup
• Flow at 58 psi / 4 bars: 620 LPH (30 Amp)

To fit

• Toyota GT86 (2017-2020)
• Subaru BRZ (2012-2020)
• Scion FR-S (2012-2016)
