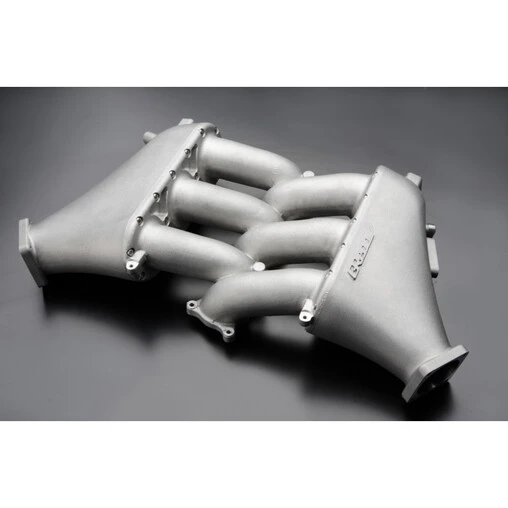

GReddy Intake Plenum RX For Nissan GT-R (Surge Tank)

GReddy Surge Tank / Intake Plenum

• For Nissan GT-R (2009+)
• Maximises air supply to the engine
• Withstands high boost pressures
• Large volume collector tanks with 58 mm runners
• Compatible with OE throttle body or GReddy RX throttle kit
• Made in Japan
• GReddy part no. : 13522330

GReddy Surge Tank RX for Nissan GT-R R35 Specifications

Developed specifically for the Nissan GT-R, this GReddy 35RX manifold significantly improves the intake efficiency of the VR38DETT. This high-volume, high-flow plenum, made from cast aluminium, is ideal for high-power applications.

The mounting position of the throttle has been reviewed using flow simulation to distribute the air evenly in each cylinder. The efficiency of inertia supercharging and maximum power were also taken into account. As a result, the capacity of the tank has been increased by 82% compared with the factory one.

To improve mid-range performance and response, the intake ports have been redesigned to take on a funnel shape. With large 58mm diameter runners, the air volume is also greater at high revs.

Key Features

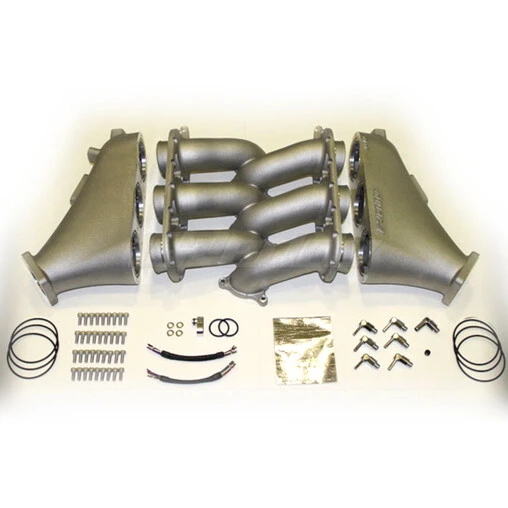

• 3-piece intake manifold
• Larger runners (58mm)
• 2x large volume end tanks (+85%)

Please note : Requires 1/8″ NPT screw machining on the stock balance tube for installing a blowby union.
