HKS Turbo Timer Harness TT-7 : Toyota Supra MK4 (>96), JZX90/100, Land Cruiser… (plug & Play)

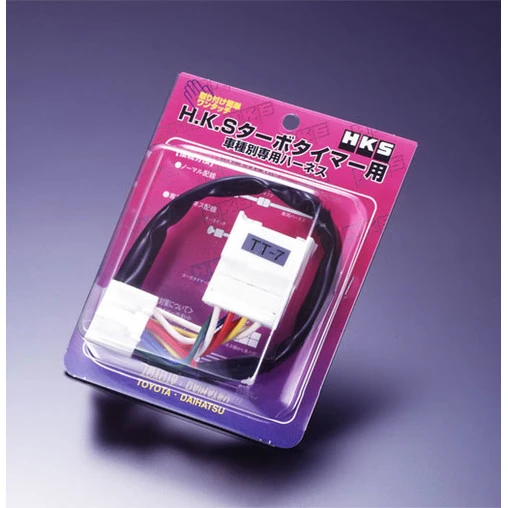

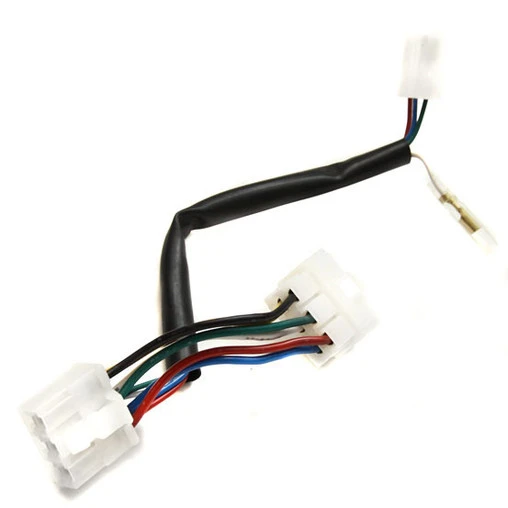

HKS Turbo Timer TT-7 Harness

• Allows to install a turbo timer without modifying the vehicle’s original wiring
• Full compatibility list below
• Made in Japan, authentic HKS product
• High quality, reliable and easy to use

HKS Turbo Timer Harness Compatible Car Models (TT-7)

• Toyota Aristo JZS161 (2JZ-GTE)
• Toyota Altezza SXE10 (3S-GE)
• Toyota Carina CT21# (2C-T)
• Toyota Caldina ST215 (3S-GTE)
• Toyota Caldina ST246 (3S-GTE)
• Toyota Levin & Trueno AE111 (4A-GE)
• Toyota Corolla NL50 (1N-T)
• Toyota Crown LS151 (2L-TE)
• Toyota Cresta, Mark II & Chaser JZX90 from 09/1994 to 08/1996 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser JZX100 (1JZ-GTE)
• Toyota Cresta, Mark II & Chaser LX100 (2L-TE)
• Toyota Cresta, Mark II & Chaser LX90 from 09/1994 from 08/1996 (2L-TE)
• Toyota Corsa NL50 (1N-T)
• Toyota Supra MK4 JZA80 from from 04/1996 (2JZ-GTE)
• Toyota Starlet EP91 (4E-FTE)
• Toyota Tercel NL50 (1N-T)
• Toyota Noah CR40G & 50G from 10/1996 to 11/1998 (3C-T)
• Toyota Hiace KDH2## (1KD-FTV & 2KD-FTV)
• Toyota Hilux Surf GRN215W (1GR-FE)
• Toyota Hilux Surf KZN185# (1KZ-TE)
• Toyota Harrier MCU35W (1MZ-FE)
• Toyota Premio CT21# (2C-T)
• Toyota Land Cruiser FZJ100 (1FZ-FE)
• Toyota Land Cruiser Prado KZJ9# (1KZ-TE)

HKS TT-7

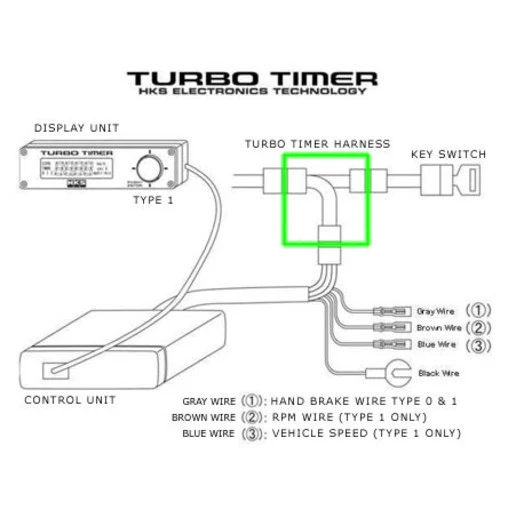

The “harness” is an adapter allowing to install your turbo timer withing cutting your original wiring (passing through the car’s ignition, see diagram below). This harness guarantees a quick and 100% reversible installation !
