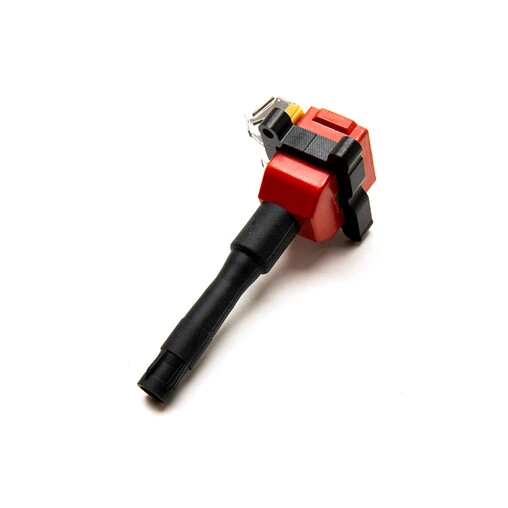

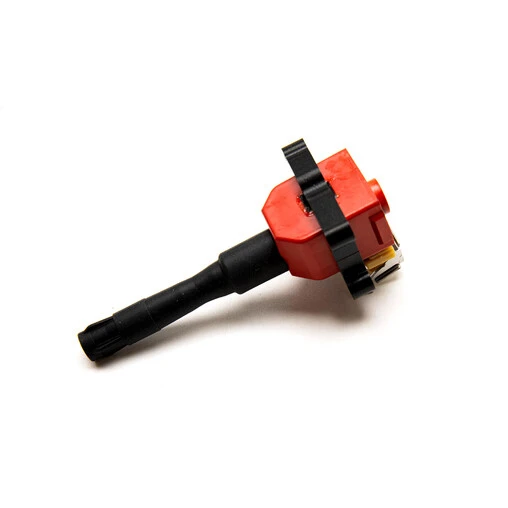

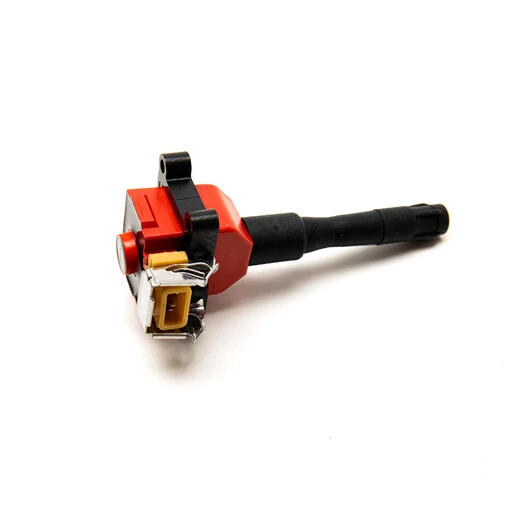

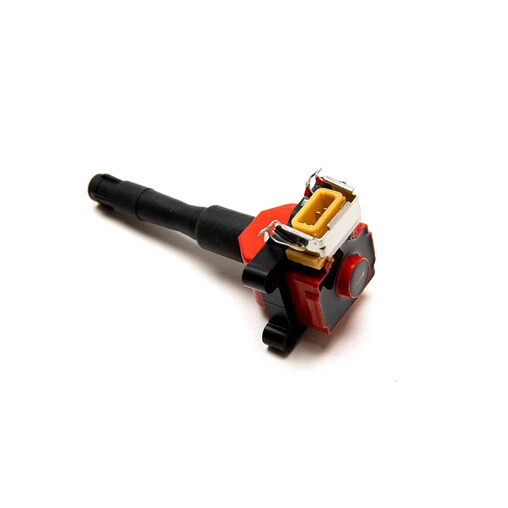

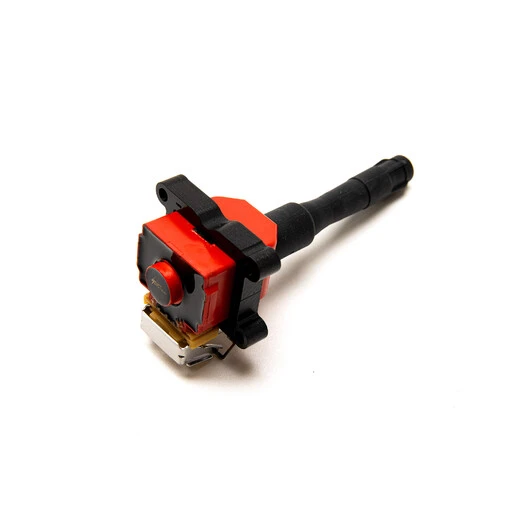

HP Ignition AutoDiag Uprated Coilpack For BMW – Type U5012 (S38, S50B30, M50, M60)

High Performance Ignition

• Self-diagnosis uprated coilpack
• To suit : see full list below
• Engine codes : S38, S50B30, M50, M60
• Simplify and speed up interventions on competition vehicles
• Solve misfires and hesitant performance
• High quality and reliability
• Provide a power and torque gain up to 4%
• Bolt-on fitment
• Sold individually

Self-Diagnosis ?

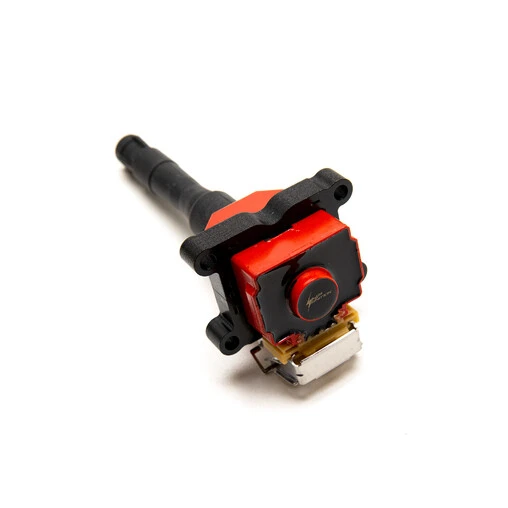

Designed for racing, the HP Ignition AutoDiag coilpacks are equipped with an additional component visible on the top, monitoring the ignition. This permanent monitoring is performed according to well-defined criteria, such as the secondary discharge time. When a cylinder encounters ignition issues, a red LED is activated on the corresponding coilpack in order to help troubleshooting (defective spark plug, for example).

When starting the engine, all the coilpacks activate their LEDs for 5 seconds then switch off simultaneously, confirming the correct operation of the AutoDiag feature. If a coilpack’s LED remains on (or comes back on later), it means that the corresponding cylinder is having an ignition issue. HP Ignition AutoDiag coilpacks are ideal for competition where they facilitate technical interventions and maintenance, and speed up troubleshooting in the paddocks.

Compatibility List

• BMW M3 E36 3.0L (S50B30)
• BMW M5 E34 3.8L (S38B38)
• BMW 3 Series E36 MK1 – 320i (M50B20), 325i (M50B25)
• BMW 5 Series E34 – 520i (M50B20), 525i (M50B25), 530i (M60B30), 540i (M60B40)
• BMW 7 Series E32 – 730i (M60B30), 740i (M60B40)
• BMW 7 Series E38 – 730i (M60B30), 740i (M60B40)
• BMW 8 Series E31 – 840i (M60B40)
• All TU & TUB variations of the above engine codes

HP Ignition Uprated Coilpacks Specifications

Specially designed for tuned engines, operating at high revs and temperatures, the HP Ignition coilpacks offer superior resistance and quality compared to OEM ignition coils. The installation of HP Ignition coilpacks will solve all common ignition problems, such as misfires and hesitant performance.

The HP Ignition coilpacks provide a gain in horsepower and torque up to 4 % thanks to their high and stable voltage, ensuring a powerful spark even at high revs. The installation is totally “plug & play”, without any modifications or adjustments necessary.

Comparative Performance Graph

Comparison carried out by our partner W-Autosport, using a bone stock Nissan 200SX S14 with an SR20DET engine.
