Innovate DB-Red Digital Wideband Air/Fuel Ratio Gauge

DB-Red Innovate Wideband AFR

• Air/fuel ratio digital gauge with red LED lighting
• Blackout appearance when unpowered
• Bosch 4.9 LSU wideband sensor and weld-in bung
• 52 mm (2-1/16”) gauge housing
• Wiring harness and cabling
• Installation instructions
• 0-1V and 0-5V analog outputs
• Made by Innovate in the USA
• Innovate reference : 37960
• Express shipping !

Innovate DB-Red Digital Wideband Air/Fuel Ratio Gauge Specifications

This Innovate AFR gauge features a red digital display, with a complete “blackout” appearance when unpowered. A 52mm (2-1/16″) gauge housing ensures that it will fit in most gauge pods and can be remotely mounted virtually anywhere. It features a 0-5V analog output for use with data loggers and almost any engine management system. The Bosch 4.9 LSU sensor used for this gauge has a faster light off time and draws little current, while being the most precise sensor on the market.

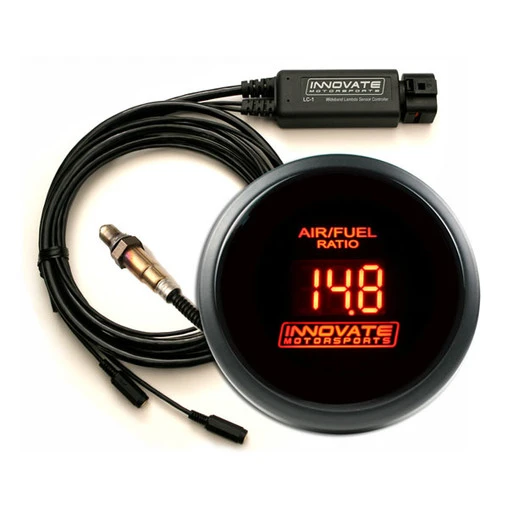

Kit contents :

• 52 mm gauge
• Bosch 4.9 LSU probe
• Exhaust weld-in bung (M18x1.50)
• Wiring harness and cabling (3 m cable between gauge and sensor)
• Installation instructions

This Innovate wideband is suitable for the following fuels (but display will always be such as lambda 1 = 14.7) :

• Unleaded gasoline
• Leaded gasoline or AFGAS can be used, but require probe change every 20 hours
• E85
• Ethanol
• Methanol
• Nitrous oxyde
• LPG
• Diesel
