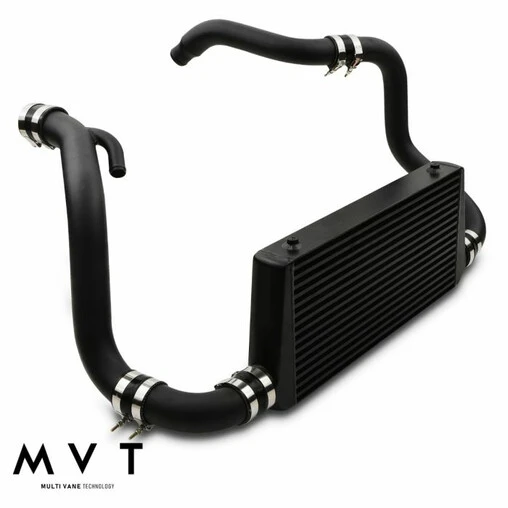

MVT Front Mount Intercooler Kit For Nissan 200SX S14, S14A & Silvia S15

MVT Intercooler Kit

• For Nissan 200SX S14, S14A & Silvia S15
• Engine code : SR20DET
• Front mount intercooler
• Exclusive MVT system for superior performance
• Discreet and sporty black finish
• Made from aluminium

MVT Front Mount Intercooler Kit for Nissan 200SX S14, S14A & Silvia S15 Specifications

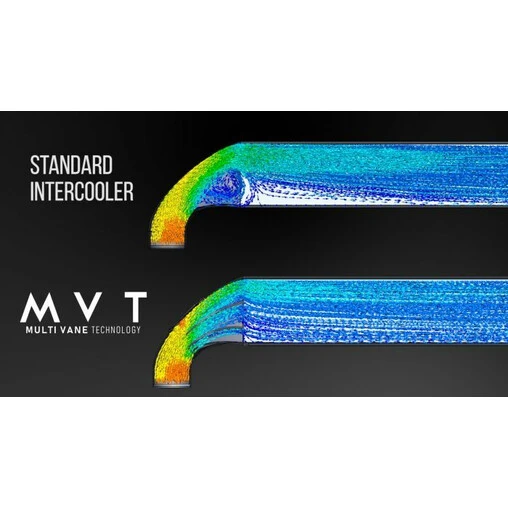

Designed for Nissan 200SX S14, S14 and Silvia S15 with the SR20DET engine, this front mount intercooler is a very innovative product. It benefits from the MVT system (Multi Vane Technology) which aims to significantly improve its efficiency, lower intake temperatures and increase engine performance. Thanks to a set of vanes housed in the end tanks of the intercooler, the air flow is distributed through the entire core for considerably more efficient cooling compared to a model without MVT.

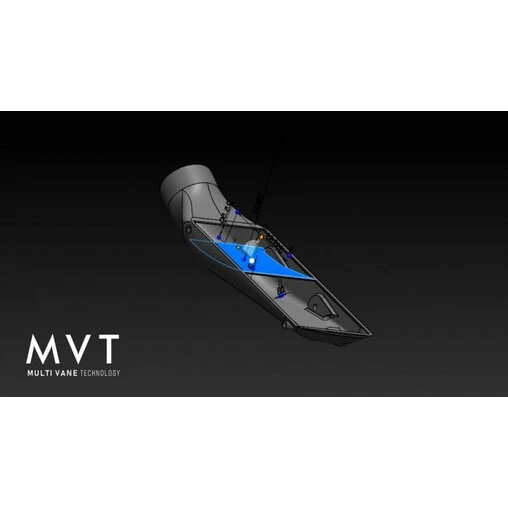

The result of two years of research and development, this intercooler required the use of CAD software, numerical simulations in fluid mechanics and 3D printing technologies for a highly efficient finished product. In addition to the MVT system, it benefits from an aluminum body specially designed to maximize air flow and has a black finish which further promotes heat dissipation.

This intercooler uses the standard twin-beam mounting of the GT-Rs and is installed directly in place of the original one, offering superior performance without the need to re-map the engine. During tests performed on a rolling road with a Nissan GT-R R35, this intercooler allowed the engine to go from 512.4 hp to 543.1 hp, a gain of 30.7 hp. This performance was achieved without any other modification of the vehicle.

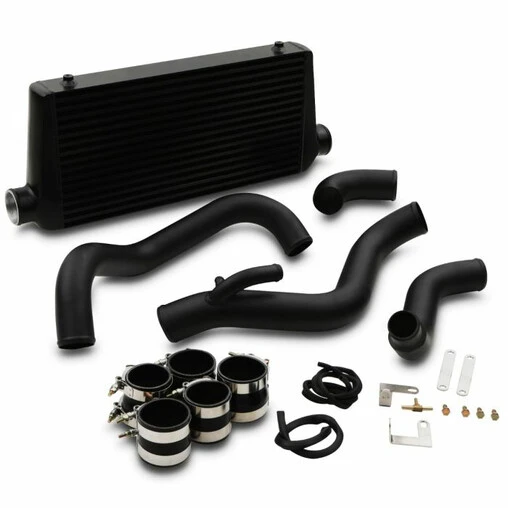

Supplied with high quality 4-layer silicone hoses and all the necessary installation accessories.

Characteristics :

• Core dimensions : 600 mm x 76 mm x 300 mm
• Overall dimensions : 780 mm x 76 mm x 320 mm
• Inlet/Outlet diameter : 76/76 mm
• Colors : black/black
• Material : alloy
